H Series Low Profile Hydraulic Torque Wrench

Hollow design, acting directly on the nut for higher precision and lighter weight.The H series hollow wrench adopts a 360°×360° omnidirectional oil pipe interface, enabling more convenient operation in narrow working spaces.Constructed from aluminum-titanium alloy, the fuselage features high strength and enhanced durability.WREN provide after-sales service all over the world, and  already got the approved by TUV certificate.

Hollow design, acting directly on the nut for higher precision and lighter weight.The H series hollow wrench adopts a 360°×360° omnidirectional oil pipe interface, enabling more convenient operation in narrow working spaces.Constructed from aluminum-titanium alloy, the fuselage features high strength and enhanced durability.WREN provide after-sales service all over the world, and  already got the approved by TUV certificate.

Product Details

-700bar maximum working pressure; Repeat accuracy ±3%.

-5 different model from 2625-48481N.m

-Fitted with 360°x360° uni-swivel quick release couplings

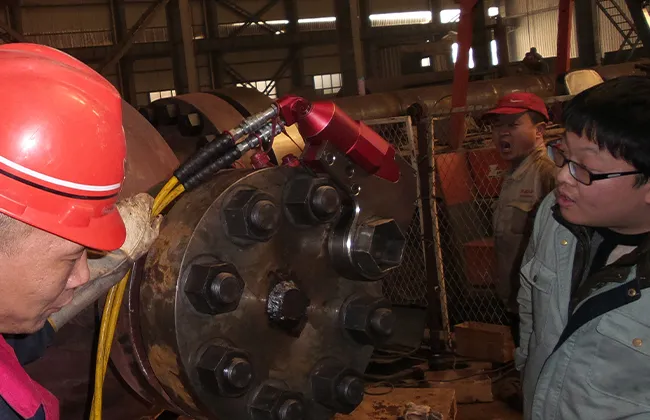

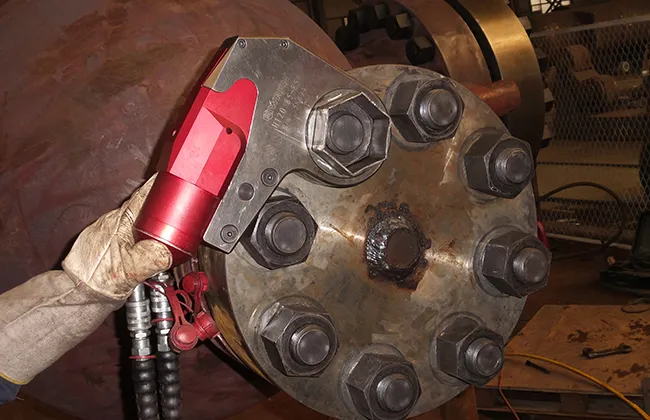

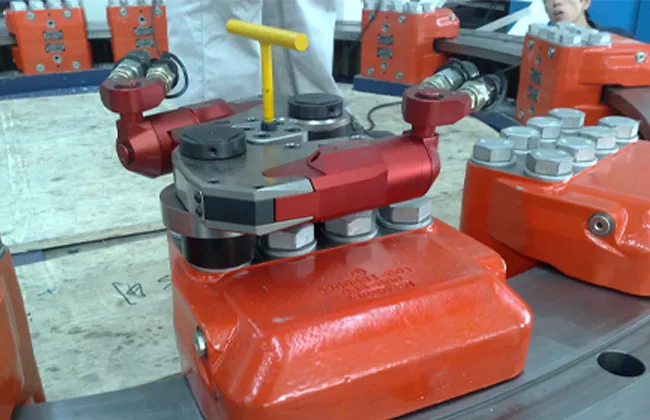

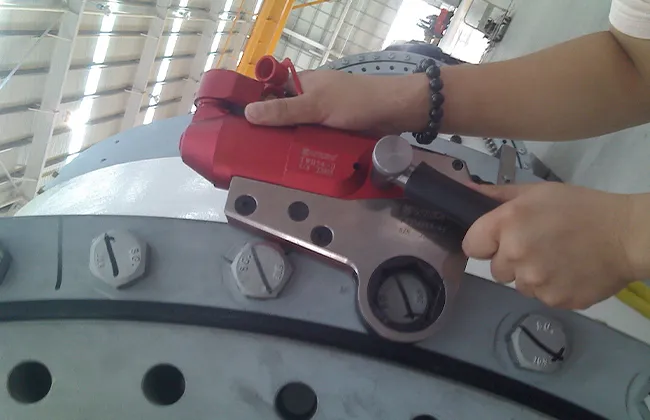

-Low profile design to accessing limited areas

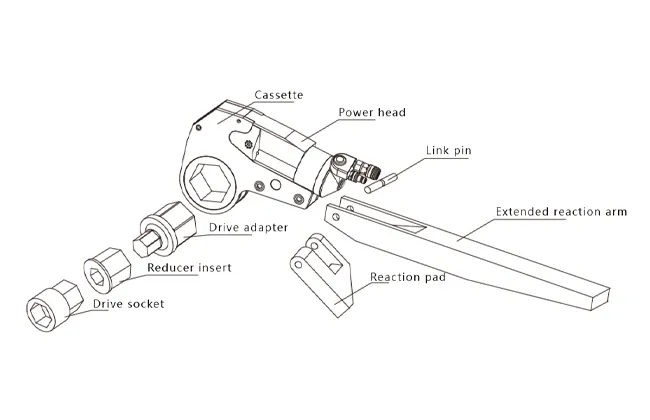

-Drivers and adaptors can be replaced easily

-700bar maximum working pressure; Repeat accuracy ±3%.

-5 different model from 2625-48481N.m

-Fitted with 360°x360° uni-swivel quick release couplings

-Low profile design to accessing limited areas

-Drivers and adaptors can be replaced easily

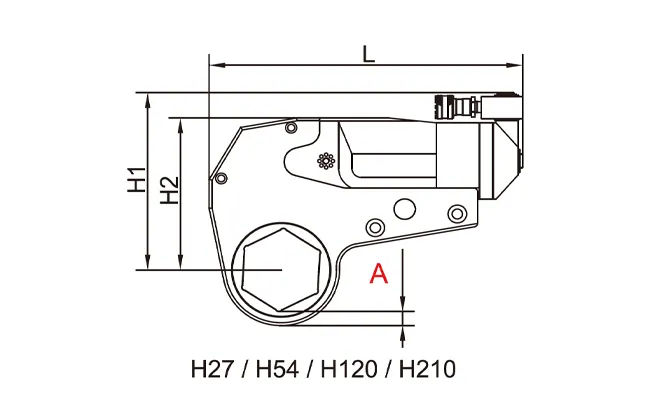

Model Torque Bolt Size Power Head Weight Cassette Weight Size(mm)
N.m m kg kg L H1 H2 W1 W2 A
H27 262~2625 19~46 1.76 1.06 193 125 97 32 51 10~15
306~3068 50~60 193 136 108 32 51 10~11
H54 537~5372 27~65 2.99 2.04 250 158 125 41 64 11~19
603~6037 70~80 250 169 136 41 64 11.7~19
H120 1173~11737 50~80 6.44 3.58 310 189 157 52 78 15~15.2
1434~14349 85~105 310 214 182 52 78 16~22
H210 2121~21216 70~100 12.14 6.12 378 223 191 64 97 8~21
2312~23124 105~115 378 236 204 64 97 18~24
H430 4379~43792 80~117 29.75 16.42 405* 291* 242* 83 93 25~31*
4848~48481 120~175 425* 309* 260* 83 93 25~34*

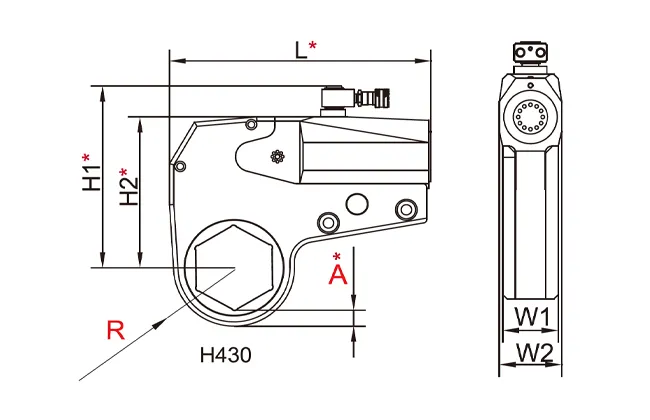

H27 H54 H120 H210 H430
Model R A Max Torque Model R A Max Torque Model R A Max Torque Model R A Max Torque Model R A Max Torque
（mm） （mm） N.m （mm） （mm） N.m （mm） （mm） N.m （mm） （mm） N.m （mm） （mm） N.m
H27-19 26 15 2625 H54-27 36 19 5372 H120-50 44 15 11737 H210-70 59 18 21216 H430-80 72 25 43792
H27-22 26 14 2625 H54-30 35 17 5372 H120-55 47 15 11737 H210-75 62 18 21216 H430-85 78 28 43792
H27-27 26 11 2625 H54-32 35 16 5372 H120-60 50 15 11737 H210-80 65 18 21216 H430-90 78 25 43792
H27-30 28 11 2625 H54-34 35 16 5372 H120-65 53 15 11737 H210-85 68 21 21216 H430-95 84 28 43792
H27-32 28 10 2625 H54-36 35 14 5372 H120-70 56 15 11737 H210-90 71 18 21216 H430-100 84 26 43792
H27-34 31 11 2328 H54-41 35 11 5372 H120-75 58 15 11737 H210-95 77 21 21216 H430-105 90 28 43792
H27-36 31 10 2625 H54-46 37 11 5858 H120-80 61 15 11737 H210-100 77 18 21216 H430-110 94 31 43792
H27-41 34 10 2625 H54-50 41 12 5372 H120-85 66 16 14349 H210-105 79 18 23124 H430-115 94 28 43792
H27-46 37 10 2625 H54-55 44 13 5372 H120-90 69 16 14349 H210-110 87 24 23124 H430-117 94 28 43792
H27-50 40 11 3068 H54-60 47 12 5372 H120-95 71 16 14349 H210-115 87 21 23124 H430-120 101 31 48481
H27-55 42 11 3068 H54-65 50 12 5372 H120-100 77 19 14349         H430-125 101 28 48481
H27-60 45 10 3068 H54-70 52 12 6037 H120-105 77 16 14349         H430-130 101 25 48481
        H54-75 56 12 6037                 H430-135 105 26 48481
        H54-80 58 12 6037                 H430-140 110 29 48481
                                H430-145 110 26 48481
                          H430-150 115 29 48481
                                H430-155 115 26 48481
                                H430-160 121 29 48481
                                H430-165 121 26 48481
                                H430-170 128 30 48481
                                H430-175 128 27 48481
