ATWH Series Low Profile Hydraulic Torque Wrench

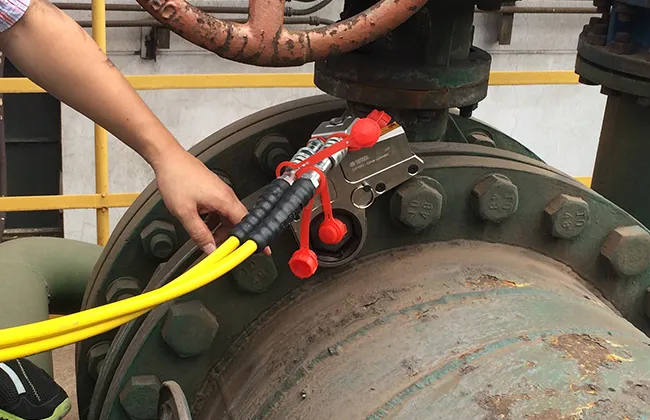

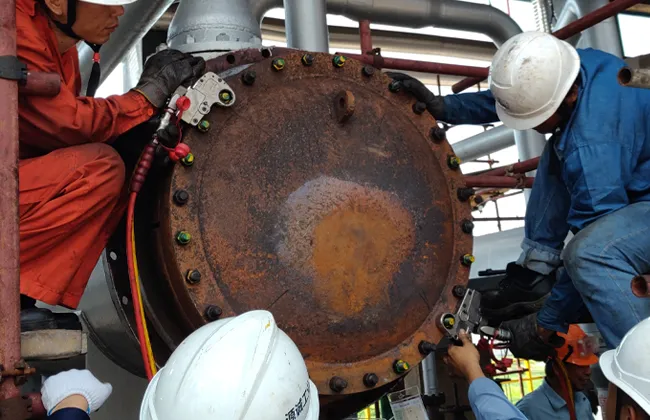

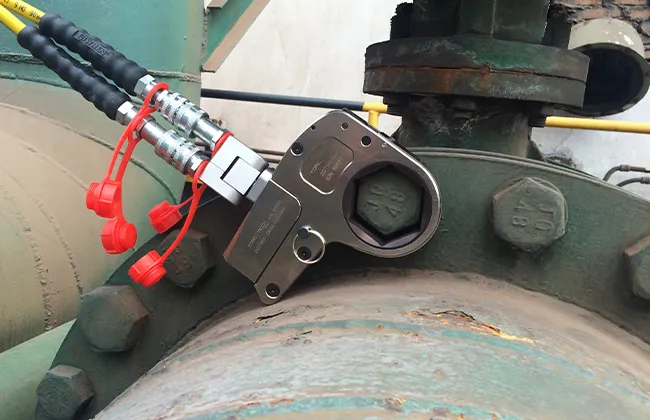

ATWH series is the professional Low profile hydraulic torque wrench which WREN extends in international market. Compared with the square drive hydraulic torque wrench, this series work directly on the nuts, and its body suits well in the narrow space. ATWH covers the nuts from 19mm to 175mm.To fulfill all different working situations, the user can just replace the hexagon cassette because the hexagon cassette is changeable, or add the reducer. WREN provide after-sales service all over the world, and already got the approved by TUV certificate.

ATWH series is the professional Low profile hydraulic torque wrench which WREN extends in international market. Compared with the square drive hydraulic torque wrench, this series work directly on the nuts, and its body suits well in the narrow space. ATWH covers the nuts from 19mm to 175mm.To fulfill all different working situations, the user can just replace the hexagon cassette because the hexagon cassette is changeable, or add the reducer. WREN provide after-sales service all over the world, and already got the approved by TUV certificate.

Product Details

-700bar max working pressure; keep the accuracy ±3%.

-5 models with the range from 225-44593N.m

-360*185 degree swivel allow the wrench free to operation with no space limitation.

-More accuracy and easier when the wrench direct operate on the nuts.

-Compact design with longer arm fully advances the reliability.

-Compact design with the raw material of advanced

-aluminum-titanium alloy, high intense.

-The new locking coupler ensures the oil keep free access.

-700bar max working pressure; keep the accuracy ±3%.

-5 models with the range from 225-44593N.m

-360*185 degree swivel allow the wrench free to operation with no space limitation.

-More accuracy and easier when the wrench direct operate on the nuts.

-Compact design with longer arm fully advances the reliability.

-Compact design with the raw material of advanced

-aluminum-titanium alloy, high intense.

-The new locking coupler ensures the oil keep free access.

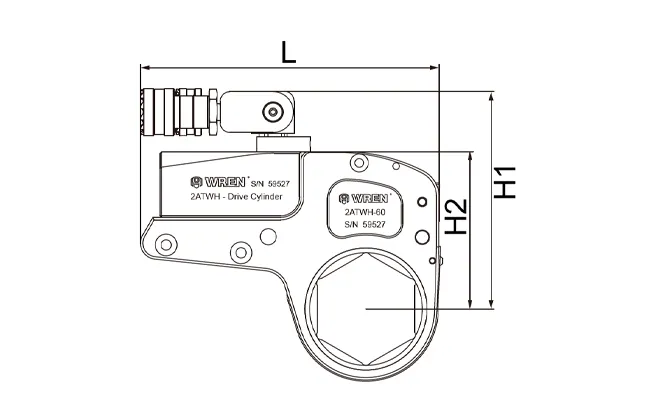

Model Torque Nut Sizes Power Head Weight Cassette Weight Size(mm)
N.m mm kg kg L H1 H2 W
08ATWH 113~1128 30~36 0.7 0.8 150 115 77 26
2ATWH 223~2238 19~55 0.9 1.5 186 132 95 32
232~2321 60 186 135 98 32
3ATWH 440~4400 34~65 1.3 2.6 238 173 124 38
4ATWH 552~5526 34~65 1.6 3.4 251 176 127 42
610~6108 70~80 256 186 137 42
8ATWH 1044~10440 41~95 3.1 6.3 308 211 154 53
1123~11235 100~105 308 220 163 53
14ATWH 1852~18521 50~117 4.8 11.4 378 252 200 64
18ATWH 2601~26011 75~135 6 12.8 385.9 264.8 217.8 70.3
30ATWH 4188~41882 85~155 10.5 20.5 460 300 253 85
4459~44593 160~175 460 313 266 85
45ATWH 6716~67162 145~190 32 56 569 350 308 102
60ATWH 9250~92500 145~230 36 71.5 590 380 338 120
10162~101622



2ATWH 3ATWH 4ATWH
Model R A Max Torque Model R A Max Torque Model R A Max Torque
（mm） （mm） N.m （mm） （mm） N.m （mm） （mm） N.m
2ATWH-19 27 16 2238 3ATWH-34 34 14 4400 4ATWH-34 36 16 2368
2ATWH-22 27 14 2238 3ATWH-36 34 13 4400 4ATWH-36 36 15 2368
2ATWH-27 27 11 2238 3ATWH-41 35 13 4400 4ATWH-41 39 15 5526
2ATWH-30 29 12 2238 3ATWH-46 40 13 4400 4ATWH-46 42 15 5526
2ATWH-32 29 11 2238 3ATWH-50 42 13 4400 4ATWH-50 44 15 5526
2ATWH-34 31 11 2238 3ATWH-55 44 12 4400 4ATWH-55 46 14 5526
2ATWH-36 31 10 2238 3ATWH-60 48 13 4400 4ATWH-60 50 15 5526
2ATWH-41 34 10 2238 3ATWH-65 51 13 4400 4ATWH-65 53 15 5526
2ATWH-46 37 10 2238 3ATWH-70 54 13 4400 4ATWH-70 56 15 6108
2ATWH-50 40 11 2238 3ATWH-75 57 13 4400 4ATWH-75 59 15 6108
2ATWH-55 43 11 2238 3ATWH-80 59 13 4400 4ATWH-80 61 15 6108
2ATWH-60 46 11 2321



8ATWH 14ATWH 18ATWH
Model R A Max Torque Model R A Max Torque Model R A Max Torque
（mm） （mm） N.m （mm） （mm） N.m （mm） （mm） N.m
8ATWH-41 46 22 10440 14ATWH-50 60 31 18521 18ATWH-75 65 22 26011
8ATWH-46 46 19 10440 14ATWH-55 60 28 18521 18ATWH-80 68 22 26011
8ATWH-50 46 17 10440 14ATWH-60 60 25 18521 18ATWH-85 71 22 26011
8ATWH-55 50 18 10440 14ATWH-65 60 22 18521 18ATWH-90 74 22 26011
8ATWH-60 52 17 10440 14ATWH-70 60 19 18521 18ATWH-95 77 22 26011
8ATWH-65 55 17 10440 14ATWH-75 63 19 18521 18ATWH-100 80 22 26011
8ATWH-70 58 17 10440 14ATWH-80 66 19 18521 18ATWH-105 84 23 26011
8ATWH-75 60 17 10440 14ATWH-85 69 19 18521 18ATWH-110 87 23 26011
8ATWH-80 63 16 10440 14ATWH-90 72 20 18521 18ATWH-115 89 23 26011
8ATWH-85 66 16 10440 14ATWH-95 74 19 18521 18ATWH-120 92 23 26011
8ATWH-90 69 17 10440 14ATWH-100 77 19 18521 18ATWH-125 95 23 26011
8ATWH-95 71 16 10440 14ATWH-105 80 19 18521 18ATWH-130 98 23 26011
8ATWH-100 75 17 11235 14ATWH-110 83 19 18521 18ATWH-135 101 23 26011
8ATWH-105 78 17 11235 14ATWH-115 87 20 18521
        14ATWH-117 87 19 18521



30ATWH 45ATWH 60ATWH
Model R A Max Torque Model R A Max Torque Model R A Max Torque
（mm） （mm） N.m （mm） （mm） N.m （mm） （mm） N.m
30ATWH-85 78 28 41882 45ATWH-145 117 33 67162 60ATWH-145 123 38 92500
30ATWH-90 78 27 41882 45ATWH-150 121 33 67162 60ATWH-150 126 38 92500
30ATWH-95 83 28 41882 45ATWH-155 124 33 67162 60ATWH-155 129 38 92500
30ATWH-100 83 25 41882 45ATWH-160 127 33 67162 60ATWH-160 132 38 92500
30ATWH-105 89 28 41882 45ATWH-165 130 33 67162 60ATWH-165 134 38 92500
30ATWH-110 89 25 41882 45ATWH-170 133 33 67162 60ATWH-170 137 38 92500
30ATWH-115 95 28 41882 45ATWH-175 136 33 67162 60ATWH-175 140 38 92500
30ATWH-117 95 27 41882 45ATWH-180 139 33 67162 60ATWH-180 143 38 92500
30ATWH-120 95 25 41882 45ATWH-185 142 33 67162 60ATWH-185 146 38 92500
30ATWH-125 101 29 41882 45ATWH-190 145 33 67162 60ATWH-190 149 38 92500
30ATWH-130 101 26 41882         60ATWH-195 152 38 92500
30ATWH-135 104 26 41882         60ATWH-200 154 38 92500
30ATWH-140 110 29 41882 08ATWH(customized) 60ATWH-205 173 40 101622
30ATWH-145 110 26 41882 Model R A Max Torque
30ATWH-150 116 29 41882 （mm） （mm） N.m
30ATWH-155 116 26 41882 08ATWH-30 26 8 1128
30ATWH-160 128 36 44593 08ATWH-36 29 8 1128
30ATWH-165 128 33 44593
30ATWH-170 128 30 44593
30ATWH-175 128 27 44593





Model Torque Nut Sizes Power Head Weight Cassette Weight Size(mm)
N.m mm kg kg L H1 H2 W
08ATWH 113~1128 30~36 0.7 0.8 150 115 77 26
2ATWH 223~2238 19~55 0.9 1.5 186 132 95 32
232~2321 60 186 135 98 32
3ATWH 440~4400 34~65 1.3 2.6 238 173 124 38
4ATWH 552~5526 34~65 1.6 3.4 251 176 127 42
610~6108 70~80 256 186 137 42
8ATWH 1044~10440 41~95 3.1 6.3 308 211 154 53
1123~11235 100~105 308 220 163 53
14ATWH 1852~18521 50~117 4.8 11.4 378 252 200 64
18ATWH 2601~26011 75~135 6 12.8 385.9 264.8 217.8 70.3
30ATWH 4188~41882 85~155 10.5 20.5 460 300 253 85
4459~44593 160~175 460 313 266 85
45ATWH 6716~67162 145~190 32 56 569 350 308 102
60ATWH 9250~92500 145~230 36 71.5 590 380 338 120
10162~101622
