LOW series low profile hydraulic torque wrench

The LOW series hydraulic torque wrench is a hydraulic solution designed for narrow working spaces on the current market. Its slim profile and hollow design enable it to operate with ease even in confined work areas. The flexible combination of the power head and working head, paired with reducers of different sizes, allows it to meet various torque requirements in multiple environments, covering a wide range of bolt sizes.WREN provide after-sales service all over the world, and already got the approved by TUV certificate

The LOW series hydraulic torque wrench is a hydraulic solution designed for narrow working spaces on the current market. Its slim profile and hollow design enable it to operate with ease even in confined work areas. The flexible combination of the power head and working head, paired with reducers of different sizes, allows it to meet various torque requirements in multiple environments, covering a wide range of bolt sizes.WREN provide after-sales service all over the world, and already got the approved by TUV certificate

Product Details

-700bar max working pressure; keep the accuracy ±3%.

-6 models with the range from 232-44593N.m

-360*185 degree swivel &360*360 degree swivel allow the wrench free to operation with no space limitation.

-More accuracy and easier when the wrench direct operate on the nuts.

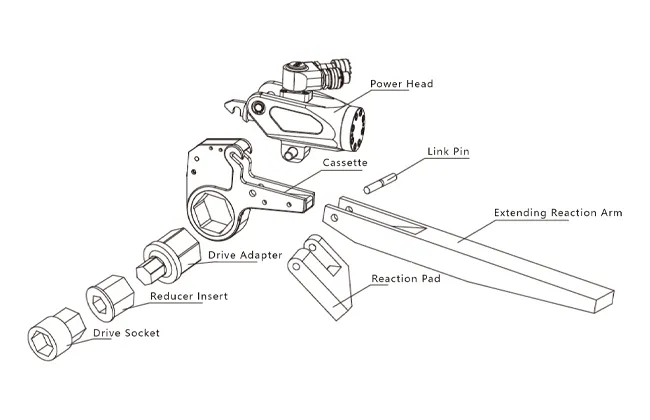

-Compact design with longer arm fully advances the reliability.

-Compact design with the raw material of advanced aluminum-titanium alloy, high intense.

-The new locking coupler ensures the oil keep free access.

-700bar max working pressure; keep the accuracy ±3%.

-6 models with the range from 232-44593N.m

-360*185 degree swivel &360*360 degree swivel allow the wrench free to operation with no space limitation.

-More accuracy and easier when the wrench direct operate on the nuts.

-Compact design with longer arm fully advances the reliability.

-Compact design with the raw material of advanced aluminum-titanium alloy, high intense.

-The new locking coupler ensures the oil keep free access.

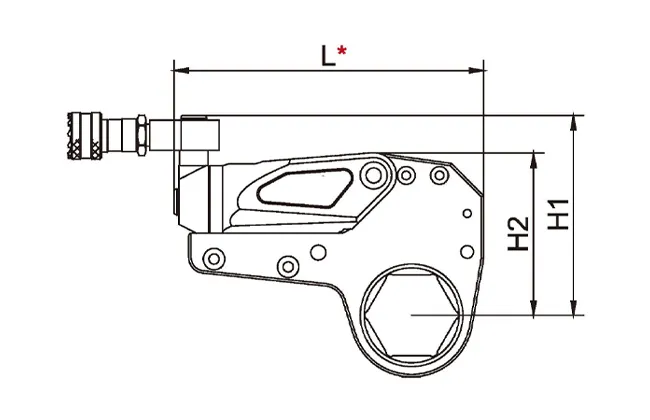

Model Torque Nut Sizes Power Head Weight Cassette Weight Size(mm)
N.m mm kg kg L L* H1 H2 W1 W2
2LOW 232~2328 19~55 1 1.6 186.1 195.4 125.9 102.3 32 51
241~2414 60 1 1.7 186.1 195.4 128.5 105 32 51
4LOW 585~2510 34~36 2 4.4 241 258 177 135.7 42 66
585~5021 41 2 4.4 241 258 177 135.7 42 66
585~5858 46~65 2 4.6 245 262 187 145.7 42 66
647~6474 70~80 2 4.6 246 263 187 145.7 42 66
8LOW 1094~10941 41~95 3.3 8 294 304 207 169 53 83
1177~11774 100~105 3.3 8.4 301 311 216 178 53 83
14LOW 1852~18521 50~117 5.5 11.6 361   239 204 64 99
18LOW 2601~26011 75~135 6 12.8 364.3   268.7 230.7 70 111
30LOW 4188~41882 110~155 11.4 29 430   303 272 85 131
4459~44593 160~175 11.4 30 441   315 285 85 131



2LOW 4LOW 8LOW

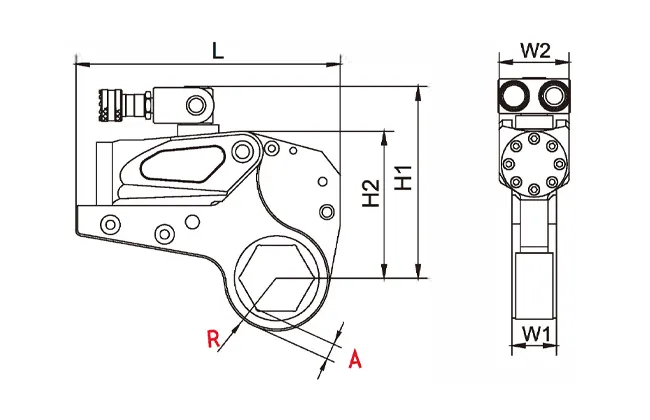

Model R A Max Torque Model R A Max Torque Model R A Max Torque
（mm） （mm） N.m （mm） （mm） N.m （mm） （mm） N.m
2LOW-19 27 16 2328 4LOW-34 36 16 2510 8LOW-41 46 22 10941
2LOW-22 27 14 2328 4LOW-36 36 15 2510 8LOW-46 46 19 10941
2LOW-27 27 11 2328 4LOW-41 39 15 5021 8LOW-50 46 17 10941
2LOW-30 29 12 2328 4LOW-46 42 15 5858 8LOW-55 50 18 10941
2LOW-32 29 11 2328 4LOW-50 44 15 5858 8LOW-60 52 17 10941
2LOW-34 31 11 2328 4LOW-55 46 14 5858 8LOW-65 55 17 10941
2LOW-36 31 10 2328 4LOW-60 50 15 5858 8LOW-70 58 17 10941
2LOW-41 34 10 2328 4LOW-65 53 15 5858 8LOW-75 60 17 10941
2LOW-46 37 10 2328 4LOW-70 56 15 6474 8LOW-80 63 16 10941
2LOW-50 40 11 2328 4LOW-75 59 15 6474 8LOW-85 66 16 10941
2LOW-55 43 11 2328 4LOW-80 61 15 6474 8LOW-90 69 17 10941
2LOW-60 46 11 2414         8LOW-95 71 16 10941
                8LOW-100 75 17 11774
                8LOW-105 78 17 11774



14LOW 18LOW 30LOW
Model R A Max Torque Model R A Max Torque Model R A Max Torque
（mm） （mm） N.m （mm） （mm） N.m （mm） （mm） N.m
14LOW-50 60 31 18521 18LOW-75 65 22 26011 30LOW-85 78 28 41882
14LOW-55 60 28 18521 18LOW-80 68 22 26011 30LOW-90 78 27 41882
14LOW-60 60 25 18521 18LOW-85 71 22 26011 30LOW-95 83 28 41882
14LOW-65 60 22 18521 18LOW-90 74 22 26011 30LOW-100 83 25 41882
14LOW-70 60 19 18521 18LOW-95 77 22 26011 30LOW-105 89 28 41882
14LOW-75 63 19 18521 18LOW-100 80 22 26011 30LOW-110 89 25 41882
14LOW-80 66 19 18521 18LOW-105 84 23 26011 30LOW-115 95 28 41882
14LOW-85 69 19 18521 18LOW-110 87 23 26011 30LOW-117 95 27 41882
14LOW-90 72 20 18521 18LOW-115 89 23 26011 30LOW-120 95 25 41882
14LOW-95 74 19 18521 18LOW-120 92 23 26011 30LOW-125 101 29 41882
14LOW-100 77 19 18521 18LOW-125 95 23 26011 30LOW-130 101 26 41882
14LOW-105 80 19 18521 18LOW-130 98 23 26011 30LOW-135 104 26 41882
14LOW-110 83 19 18521 18LOW-135 101 23 26011 30LOW-140 110 29 41882
14LOW-115 87 20 18521         30LOW-145 110 26 41882
14LOW-117 87 19 18521         30LOW-150 116 29 41882
14LOW-120 88 18.2 18521         30LOW-155 116 26 41882
                30LOW-160 128 36 44593
                30LOW-165 128 33 44593
                30LOW-170 128 30 44593
                30LOW-175 128 27 44593





Model Torque Nut Sizes Power Head Weight Cassette Weight Size(mm)
N.m mm kg kg L L* H1 H2 W1 W2
2LOW 232~2328 19~55 1 1.6 186.1 195.4 125.9 102.3 32 51
241~2414 60 1 1.7 186.1 195.4 128.5 105 32 51
4LOW 585~2510 34~36 2 4.4 241 258 177 135.7 42 66
585~5021 41 2 4.4 241 258 177 135.7 42 66
585~5858 46~65 2 4.6 245 262 187 145.7 42 66
647~6474 70~80 2 4.6 246 263 187 145.7 42 66
8LOW 1094~10941 41~95 3.3 8 294 304 207 169 53 83
1177~11774 100~105 3.3 8.4 301 311 216 178 53 83
14LOW 1852~18521 50~117 5.5 11.6 361   239 204 64 99
18LOW 2601~26011 75~135 6 12.8 364.3   268.7 230.7 70 111
30LOW 4188~41882 110~155 11.4 29 430   303 272 85 131
4459~44593 160~175 11.4 30 441   315 285 85 131



2LOW 4LOW 8LOW
Model R A Max Torque Model R A Max Torque Model R A Max Torque
（mm） （mm） N.m （mm） （mm） N.m （mm） （mm） N.m
2LOW-19 27 16 2328 4LOW-34 36 16 2510 8LOW-41 46 22 10941
2LOW-22 27 14 2328 4LOW-36 36 15 2510 8LOW-46 46 19 10941
2LOW-27 27 11 2328 4LOW-41 39 15 5021 8LOW-50 46 17 10941
2LOW-30 29 12 2328 4LOW-46 42 15 5858 8LOW-55 50 18 10941
2LOW-32 29 11 2328 4LOW-50 44 15 5858 8LOW-60 52 17 10941
2LOW-34 31 11 2328 4LOW-55 46 14 5858 8LOW-65 55 17 10941
2LOW-36 31 10 2328 4LOW-60 50 15 5858 8LOW-70 58 17 10941
2LOW-41 34 10 2328 4LOW-65 53 15 5858 8LOW-75 60 17 10941
2LOW-46 37 10 2328 4LOW-70 56 15 6474 8LOW-80 63 16 10941
2LOW-50 40 11 2328 4LOW-75 59 15 6474 8LOW-85 66 16 10941
2LOW-55 43 11 2328 4LOW-80 61 15 6474 8LOW-90 69 17 10941
2LOW-60 46 11 2414         8LOW-95 71 16 10941
                8LOW-100 75 17 11774
                8LOW-105 78 17 11774



14LOW 18LOW 30LOW
Model R A Max Torque Model R A Max Torque Model R A Max Torque
（mm） （mm） N.m （mm） （mm） N.m （mm） （mm） N.m
14LOW-50 60 31 18521 18LOW-75 65 22 26011 30LOW-85 78 28 41882
14LOW-55 60 28 18521 18LOW-80 68 22 26011 30LOW-90 78 27 41882
14LOW-60 60 25 18521 18LOW-85 71 22 26011 30LOW-95 83 28 41882
14LOW-65 60 22 18521 18LOW-90 74 22 26011 30LOW-100 83 25 41882
14LOW-70 60 19 18521 18LOW-95 77 22 26011 30LOW-105 89 28 41882
14LOW-75 63 19 18521 18LOW-100 80 22 26011 30LOW-110 89 25 41882
14LOW-80 66 19 18521 18LOW-105 84 23 26011 30LOW-115 95 28 41882
14LOW-85 69 19 18521 18LOW-110 87 23 26011 30LOW-117 95 27 41882
14LOW-90 72 20 18521 18LOW-115 89 23 26011 30LOW-120 95 25 41882
14LOW-95 74 19 18521 18LOW-120 92 23 26011 30LOW-125 101 29 41882
14LOW-100 77 19 18521 18LOW-125 95 23 26011 30LOW-130 101 26 41882
14LOW-105 80 19 18521 18LOW-130 98 23 26011 30LOW-135 104 26 41882
14LOW-110 83 19 18521 18LOW-135 101 23 26011 30LOW-140 110 29 41882
14LOW-115 87 20 18521         30LOW-145 110 26 41882
14LOW-117 87 19 18521         30LOW-150 116 29 41882
14LOW-120 88 18.2 18521         30LOW-155 116 26 41882
                30LOW-160 128 36 44593
                30LOW-165 128 33 44593
                30LOW-170 128 30 44593
                30LOW-175 128 27 44593
