V-MED Series AC Powered Electrical Torque Wrench

V-MED is a new generation of electric torque wrenches for bolt safety or removal in heavy duty industries where precision, power and safety are required. The product can preset the torque, the torque range can reach 8000N.m,providing continuous, stable and controllable torque output.

V-MED is a new generation of electric torque wrenches for bolt safety or removal in heavy duty industries where precision, power and safety are required. The product can preset the torque, the torque range can reach 8000N.m,providing continuous, stable and controllable torque output.

Product Details

Driven by 220V AC, precise torque setting, providing smooth and continuous controlled output

Digital torque setting, adjustable for every single Nm

Provide torque up to 8000 Nm, automatic pressure relief to prevent seizure

Efficient gear reduction system, safe design to prevent overload

Driven by 220V AC, precise torque setting, providing smooth and continuous controlled output

Digital torque setting, adjustable for every single Nm

Provide torque up to 8000 Nm, automatic pressure relief to prevent seizure

Efficient gear reduction system, safe design to prevent overload

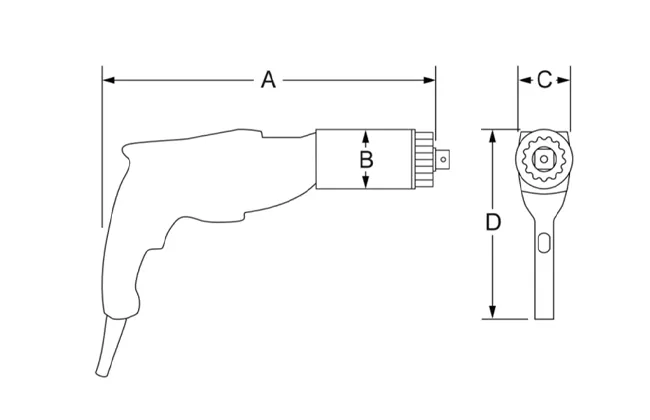

Model Square drive Torque Rotating speed Weight Noise Size
N.m rpm kg db A B C D
V-MED14 3/4" 140~1400 7.7 4.9 80 438 63 73 203
V-MED20 1" 200~2000 5 5.9 80 280 69 69 203
V-MED40 1" 400~4000 3 6.2 80 310 81 81 203
V-MED60 1.1/2" 600~6000 2.5 9 80 340 95 95 203
V-MED80 1.1/2" 800~8000 2 11.7 80 500 102 73 203
