TYS21 Calibrator For Bolt Tensioner

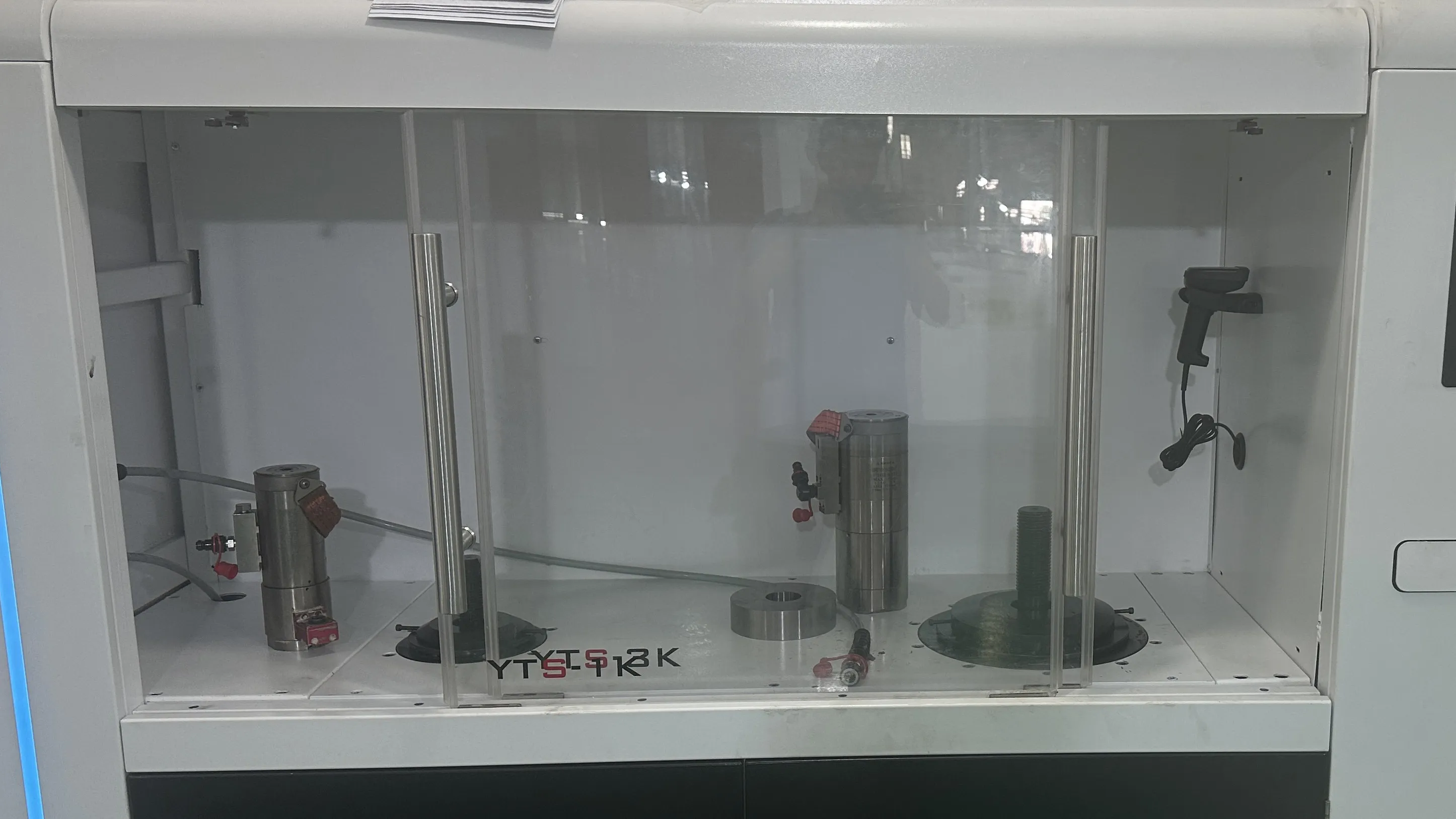

TYS21 calibration bench for Bolt Tensioner enables delicate calibration for bolt tensioners and provides a calibration report for each tensioner. When the tensioner works, the software will show the input pressure and output load capacity in real time, compare the actual values with theoretical values. The dual sensor design supports 100-1000kN, 300-3000kN tensioner calibration.

TYS21 calibration bench for Bolt Tensioner enables delicate calibration for bolt tensioners and provides a calibration report for each tensioner. When the tensioner works, the software will show the input pressure and output load capacity in real time, compare the actual values with theoretical values. The dual sensor design supports 100-1000kN, 300-3000kN tensioner calibration.

Product Details

-Accurate calibration of tensioner input pressure and output load capacity

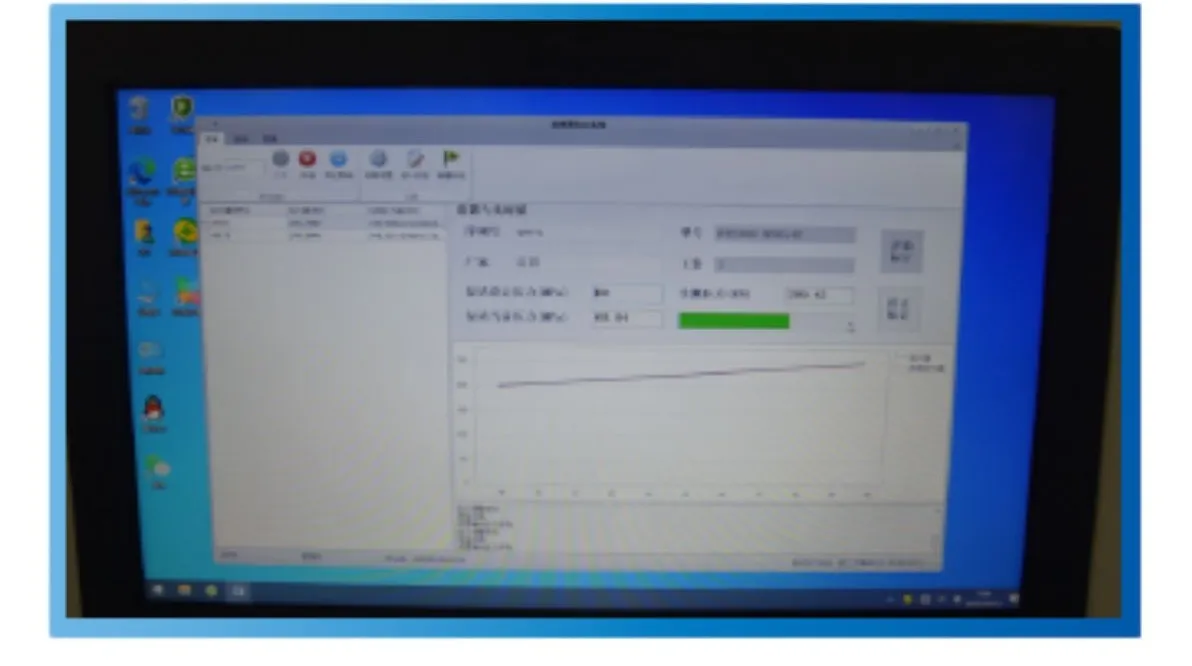

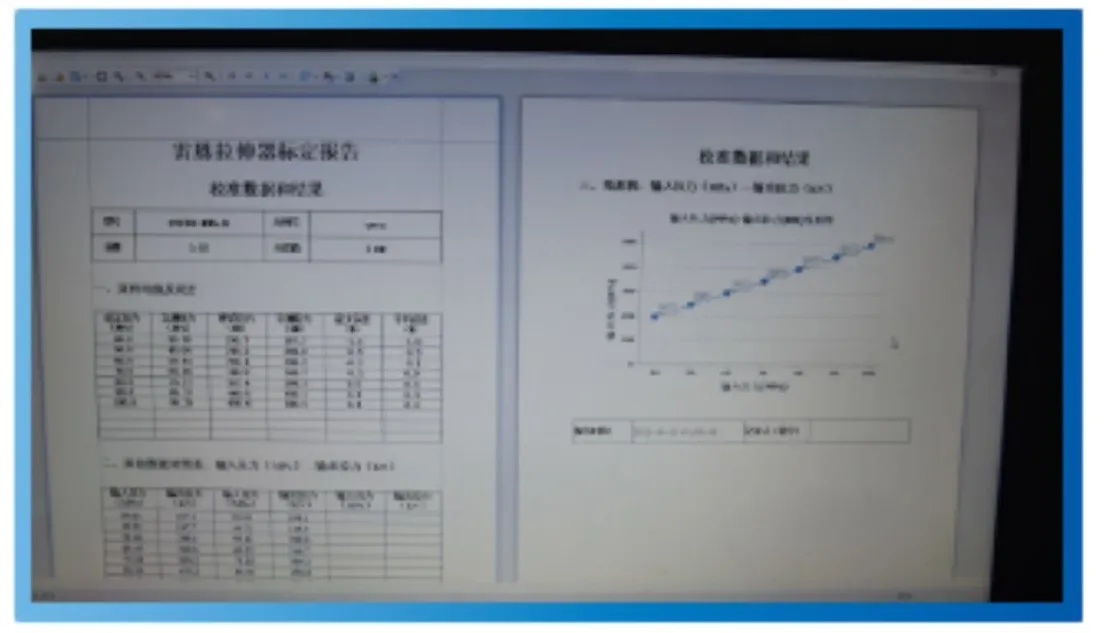

-Clear system interface, easy to operate, real-time displayed test data, automatic generated calibration report

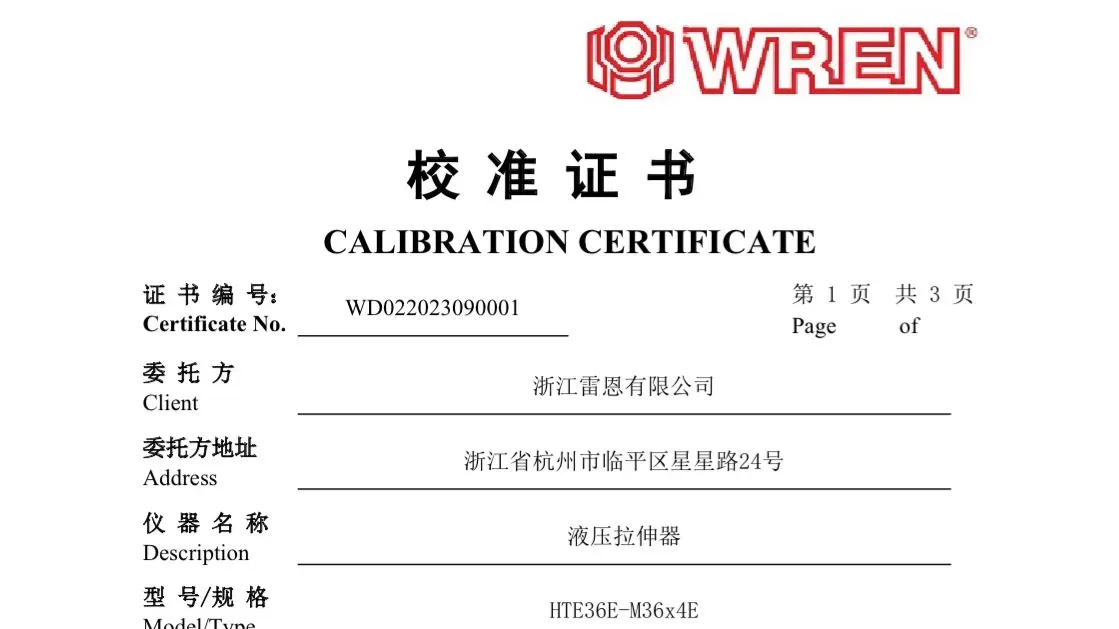

-It is calibrated by Zhejiang Provincial Metrology Institute, and the calibration is in line with CNAS standards

-Support 100KN - 3000KN tensioner calibration

-Accuracy level 0.5, resolution ≤0.1kN, long-term stability ≤0.3%

-Working pressure 0-1500 bar

-Accurate calibration of tensioner input pressure and output load capacity

-Clear system interface, easy to operate, real-time displayed test data, automatic generated calibration report

-It is calibrated by Zhejiang Provincial Metrology Institute, and the calibration is in line with CNAS standards

-Support 100KN - 3000KN tensioner calibration

-Accuracy level 0.5, resolution ≤0.1kN, long-term stability ≤0.3%

-Working pressure 0-1500 bar

Model Calibrating Range(Nm) Power Pressure Voltage length*height*width
Min Max KW bar mm
TYS21-001 100 3000 1.1 700 220/50 2400*750*1750
Model Calibrating Range(Nm) Power Pressure Voltage length*height*width
Min Max KW bar mm
TYS21-001 100 3000 1.1 700 220/50 2400*750*1750
