TYS11 Calibration Bench For Hydraulic Wrench

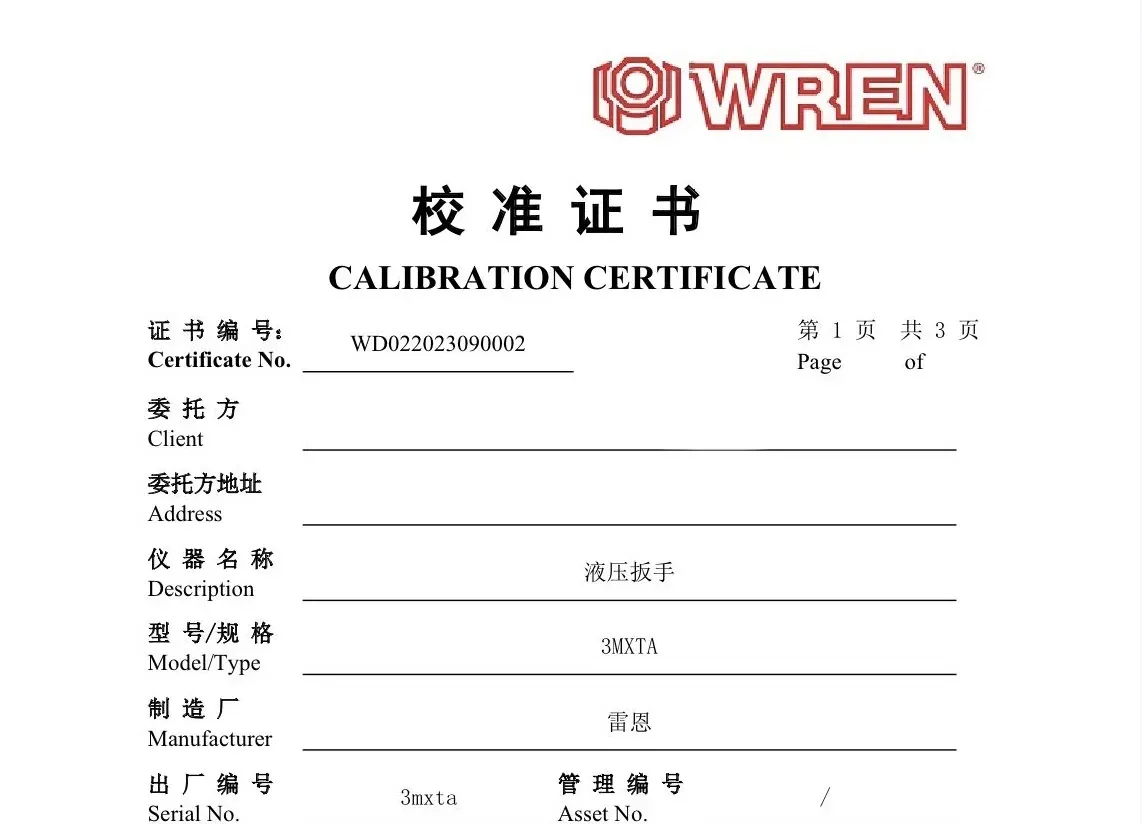

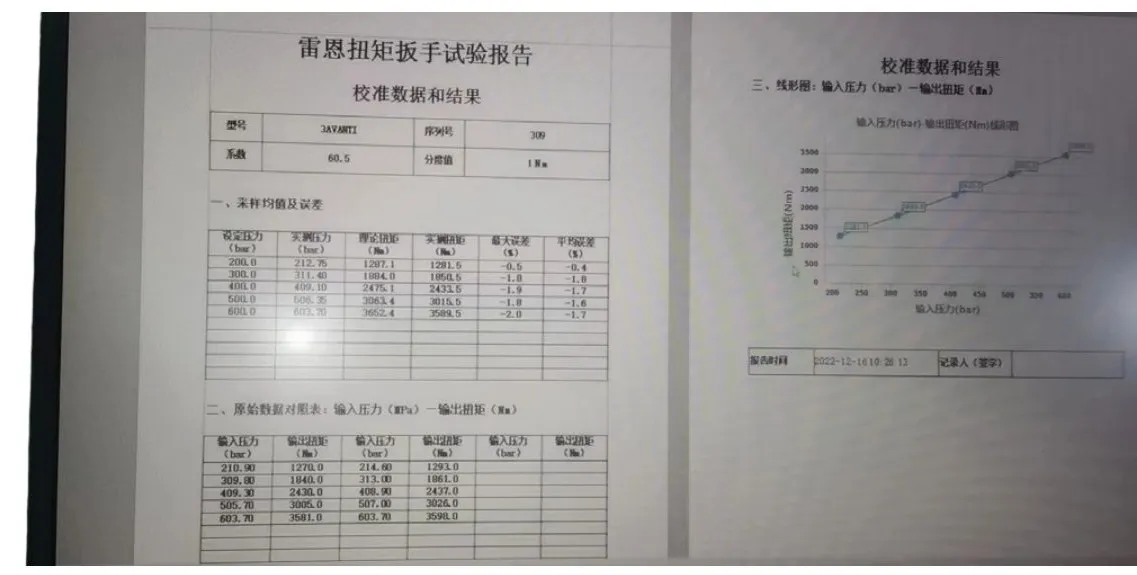

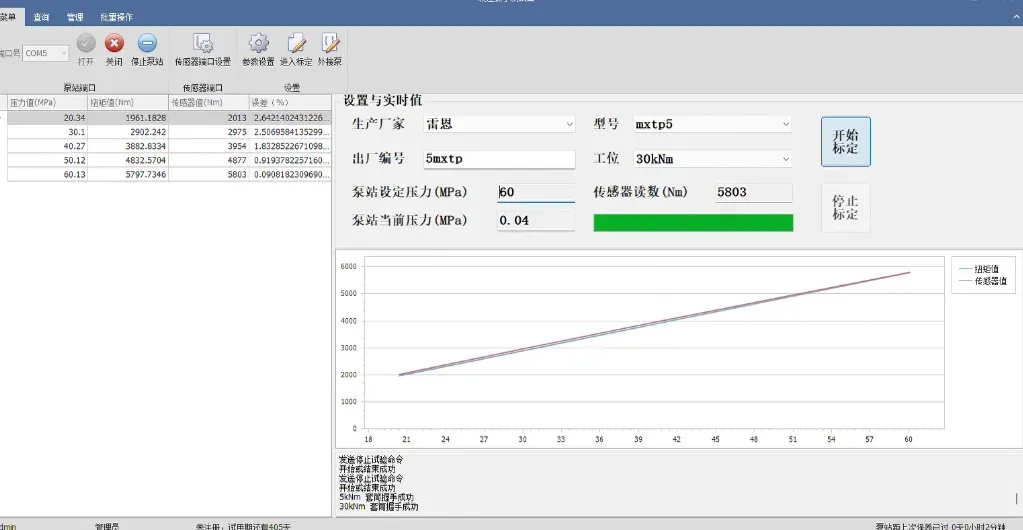

TYS11 calibration bench for Hydraulic Wrench enables delicate calibration for hydraulic torque wrench and provides a calibration report for each wrench. When the wrench works, the software will show the input pressure and output torque value in real time, compare the actual values with theoretical values. The dual sensor design supports 500Nm-5000Nm, 3000Nm-30000Nm hydraulic wrench inspection.

TYS11 calibration bench for Hydraulic Wrench enables delicate calibration for hydraulic torque wrench and provides a calibration report for each wrench. When the wrench works, the software will show the input pressure and output torque value in real time, compare the actual values with theoretical values. The dual sensor design supports 500Nm-5000Nm, 3000Nm-30000Nm hydraulic wrench inspection.

Product Details

-Accurately calibrate the input pressure and output torque of the hydraulic wrench

-The system interface is clear and easy to operate, the test data is displayed in real time, and the calibration report is generated

-Dual sensor, support 500Nm-5000Nm, 3000Nm-30000Nm hydraulic wrench inspection

-Passed the verification and certification of a third-party organization with CNAS qualification, and the calibration meets CNAS standards

-Accuracy of ±1%

-The cabinet is made of sheet metal, and the table is made of aluminum alloy, which is safe and Reliable

-Accurately calibrate the input pressure and output torque of the hydraulic wrench

-The system interface is clear and easy to operate, the test data is displayed in real time, and the calibration report is generated

-Dual sensor, support 500Nm-5000Nm, 3000Nm-30000Nm hydraulic wrench inspection

-Passed the verification and certification of a third-party organization with CNAS qualification, and the calibration meets CNAS standards

-Accuracy of ±1%

-The cabinet is made of sheet metal, and the table is made of aluminum alloy, which is safe and Reliable

Model Calibrating Range(Nm) Power Pressure Voltage length*height*width
Min Max KW bar V/Hz mm
TYS11-001 500 30000 1.5 700 220/50 1000*800*800
Model Calibrating Range(Nm) Power Pressure Voltage length*height*width
Min Max KW bar V/Hz mm
TYS11-001 500 30000 1.5 700 220/50 1000*800*800
