TYS10 Torque Calibrator For Hydraulic Wrench

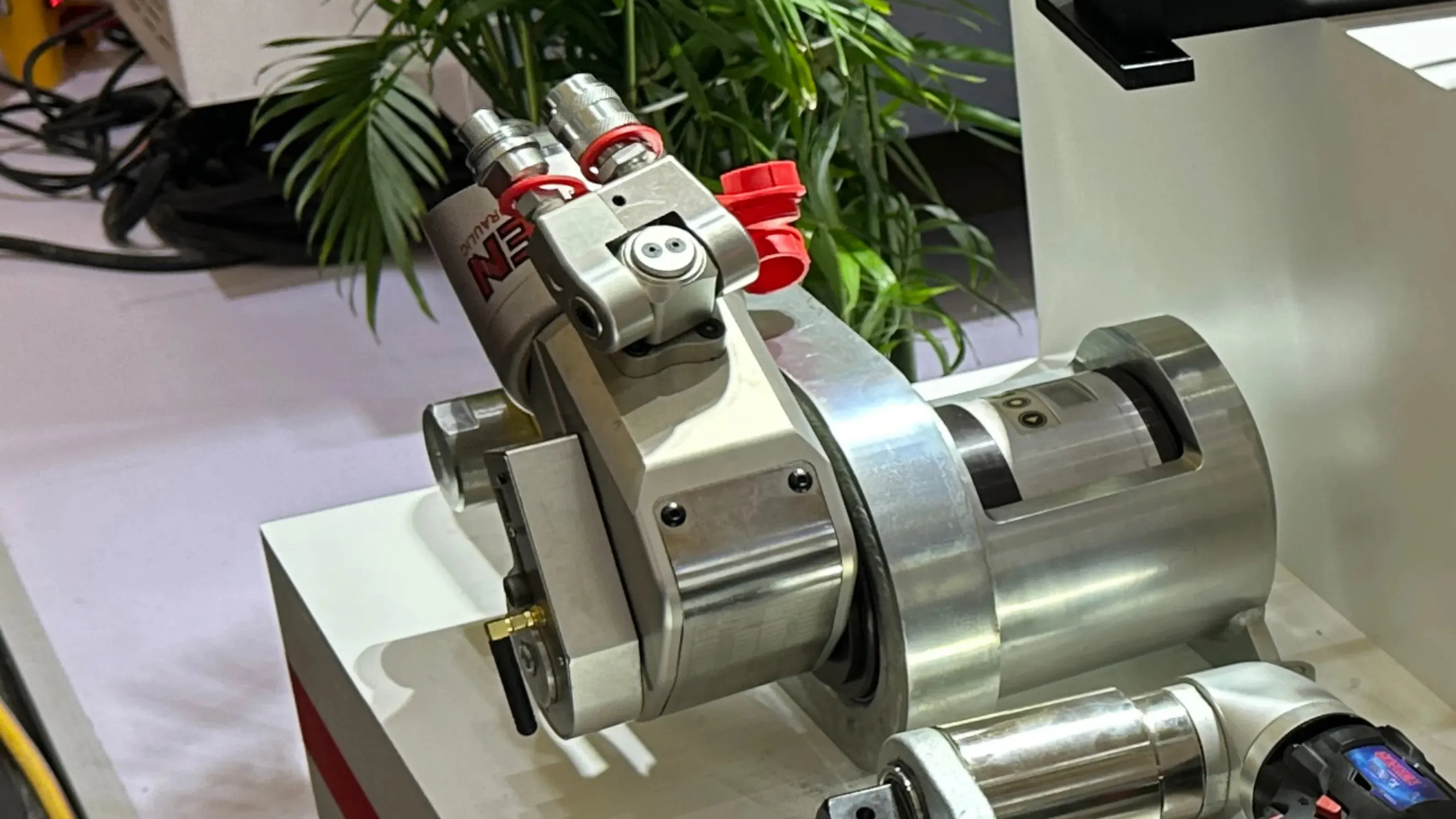

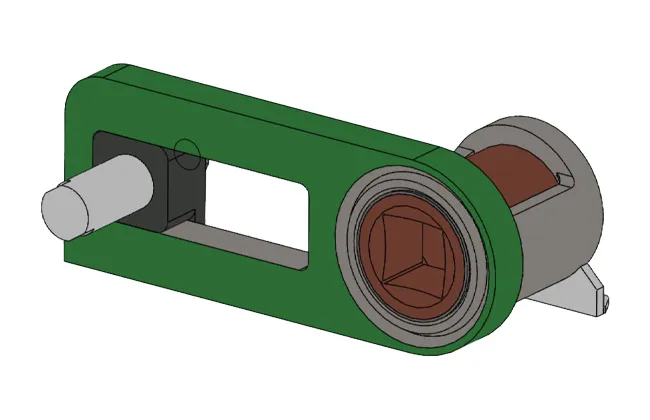

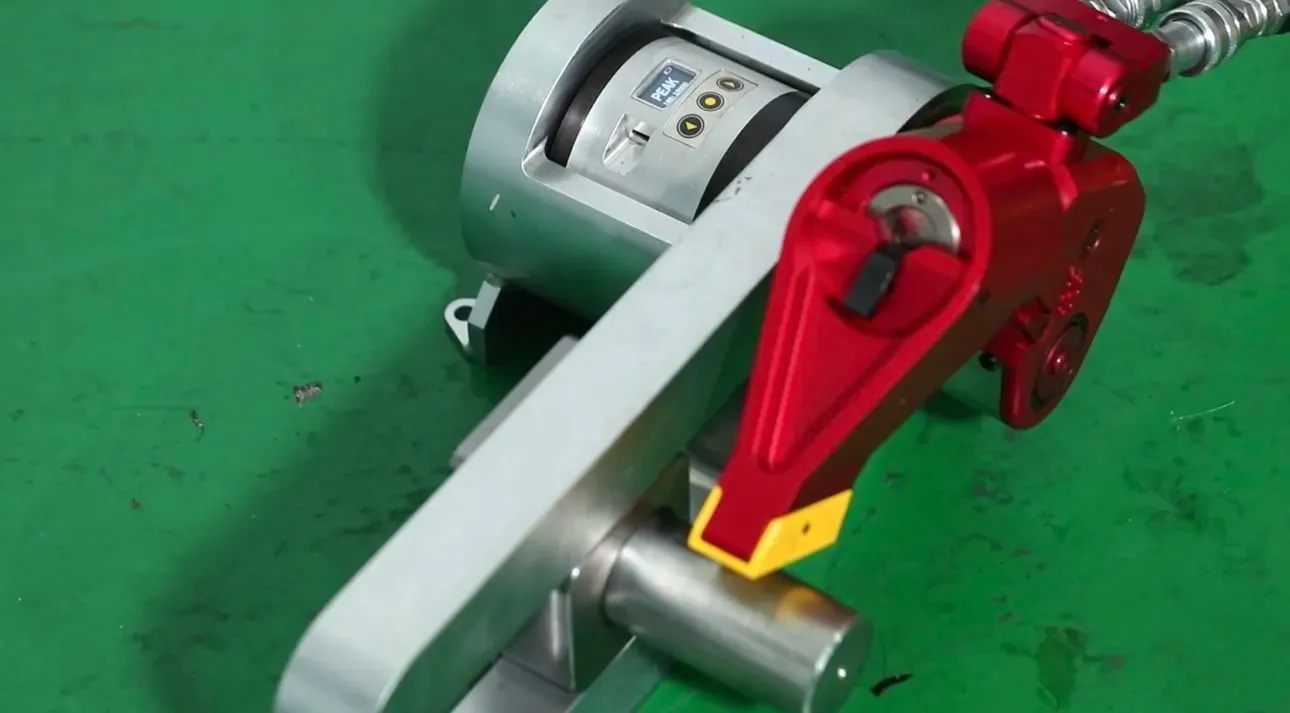

TYS10 torque calibrator for Hydraulic Wrench offers a simple way to measure the output torque of hydraulic torque wrench. When the wrench works, the screen on the calibrator will show the output torque value in the real time. The calibrated results will also be recorded and downloaded in different format. TYS10 torque calibrator has a reliable structure, and is composed of a torque sensor and a stress bracket.

TYS10 torque calibrator for Hydraulic Wrench offers a simple way to measure the output torque of hydraulic torque wrench. When the wrench works, the screen on the calibrator will show the output torque value in the real time. The calibrated results will also be recorded and downloaded in different format. TYS10 torque calibrator has a reliable structure, and is composed of a torque sensor and a stress bracket.

Product Details

-Precise calibration of output torque.

-The calibrated results can be viewed, recorded, and output in real time (support XLS, CSV, PDF format, support Bluetooth connection tablet computer) accurate testing, stable performance, rich functions, and easy operation.

-It can meet the torque wrench with torque value from 800Nm-20000Nm. Sensor accuracy of ±0.5%.

-Precise calibration of output torque.

-The calibrated results can be viewed, recorded, and output in real time (support XLS, CSV, PDF format, support Bluetooth connection tablet computer) accurate testing, stable performance, rich functions, and easy operation.

-It can meet the torque wrench with torque value from 800Nm-20000Nm. Sensor accuracy of ±0.5%.

Model Square Drive Calibrating Range(Nm) Size(mm)
mm Min Max A B C
TYS10-002 1.1/2" 800 10000 189 64 102
TYS10-003 2.1/2" 800 20000 221 64 105
Model Square Drive Calibrating Range(Nm) Size(mm)
mm Min Max A B C
TYS10-002 1.1/2" 800 10000 189 64 102
TYS10-003 2.1/2" 800 20000 221 64 105
