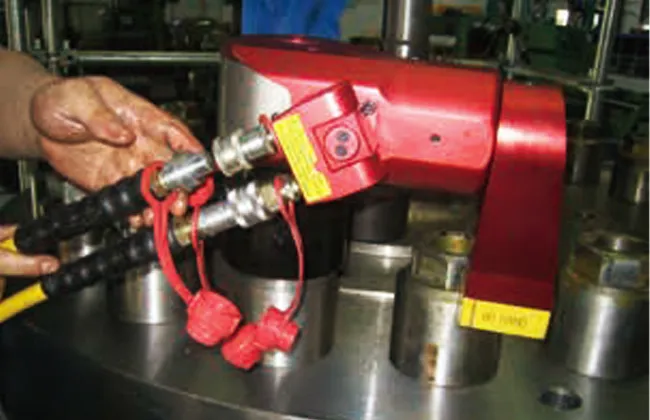

S Series Square Drive Hydraulic Torque Wrench

The S Series hydraulic torque wrench features a non-ratcheting trigger design, preventing the wrench and bolt from jamming during operation and allowing easy removal after tightening is completed. It is equipped with an in-line 360° fine-adjustable reaction arm.WREN provide after-sales service all over the world, and already got the approved by TUV certificate

The S Series hydraulic torque wrench features a non-ratcheting trigger design, preventing the wrench and bolt from jamming during operation and allowing easy removal after tightening is completed. It is equipped with an in-line 360° fine-adjustable reaction arm.WREN provide after-sales service all over the world, and already got the approved by TUV certificate

Product Details

-700bar maximum working pressure; Repeat accuracy ±3%.

-5 different model from 1727-36992N.m

-360º X 180° multi-positional swivel quick release couplings

-Working with the high resistance sockets, support more size of screw

-360° Adjustable reaction arm with safely lock feature. can be used without reaction arm

- made by aluminum-titanium, high resistance with and light body

-Replaceable square drive adapters

-700bar maximum working pressure; Repeat accuracy ±3%.

-5 different model from 1727-36992N.m

-360º X 180° multi-positional swivel quick release couplings

-Working with the high resistance sockets, support more size of screw

-360° Adjustable reaction arm with safely lock feature. can be used without reaction arm

- made by aluminum-titanium, high resistance with and light body

-Replaceable square drive adapters



Model Torque Bolt Size Square Drive Cassette Weight Size(mm)
N.m m kg L1 L2 H1 H2 H3 H4 R
S17 172~1727 16~36 3/4" 2 129 167 51 73 90 131 25
S45 452~4529 22~48 1" 4.6 167 218 68 98 121 170 4
S100 1006~10064 30~64 1½" 10 223 293 92 135 163 211 46
S150 1497~14974 36~72 1½" 14.8 264 323 100 141 177 225 50
S370 3699~36992 48~100 2½" 32.5 329 432 137 200 240 288 66
