ATWS Series Square Drive Hydraulic Torque Wrench

ATWS series is the professional hydraulic torque wrench which WREN vigorously extends in international market. Its raw material is aluminum-titanium alloy which makes the wrench light and high intense. ATWS series has 6 models with the range from 183N.m to 48666N.m; covers the most of bolts size, and be the most comprehensive available in the market. WREN provide after-sales service all over the world, and already got the approved by TUV certificate.

ATWS series is the professional hydraulic torque wrench which WREN vigorously extends in international market. Its raw material is aluminum-titanium alloy which makes the wrench light and high intense. ATWS series has 6 models with the range from 183N.m to 48666N.m; covers the most of bolts size, and be the most comprehensive available in the market. WREN provide after-sales service all over the world, and already got the approved by TUV certificate.

Product Details

-700bar Max working pressure and the accuracy keep within ±3%

-All together 6 models with the range from 183N.m to 48666N.m, which covers the most bolts size, and be the most comprehensive available in the market.

-The 360º X 180° degree swivel is free to operation with no space limitation.

-The square drive operate with the high intense socket and suitable with large range of bolts

-360 degree adjustable reaction arm allows placing in any support point.

-Compact design with the raw material of advanced aluminum-titanium alloy, high intense.

-The new locking coupler ensures the oil keep free access.

-700bar Max working pressure and the accuracy keep within ±3%

-All together 6 models with the range from 183N.m to 48666N.m, which covers the most bolts size, and be the most comprehensive available in the market.

-The 360º X 180° degree swivel is free to operation with no space limitation.

-The square drive operate with the high intense socket and suitable with large range of bolts

-360 degree adjustable reaction arm allows placing in any support point.

-Compact design with the raw material of advanced aluminum-titanium alloy, high intense.

-The new locking coupler ensures the oil keep free access.
TYPE 1ATWS 3ATWS 5ATWS 8ATWS 10ATWS 20ATWS 25ATWS 35ATWS
Torque (N.m) 183-1837 455-4512 758-7528 1096-10780 1456-14560 2666-26664 3472-34725 4866-48666
Bolt size (M) 16-36 22-48 27-56 30-64 36-72 42-90 48-100 64-120
Weight Kg 2.5 5 8 11 15 26.5 35 50
L1 (mm) 135 170 204 220 245 303 315 495
L2 (mm) 186 244 285 313 352 451 463 495

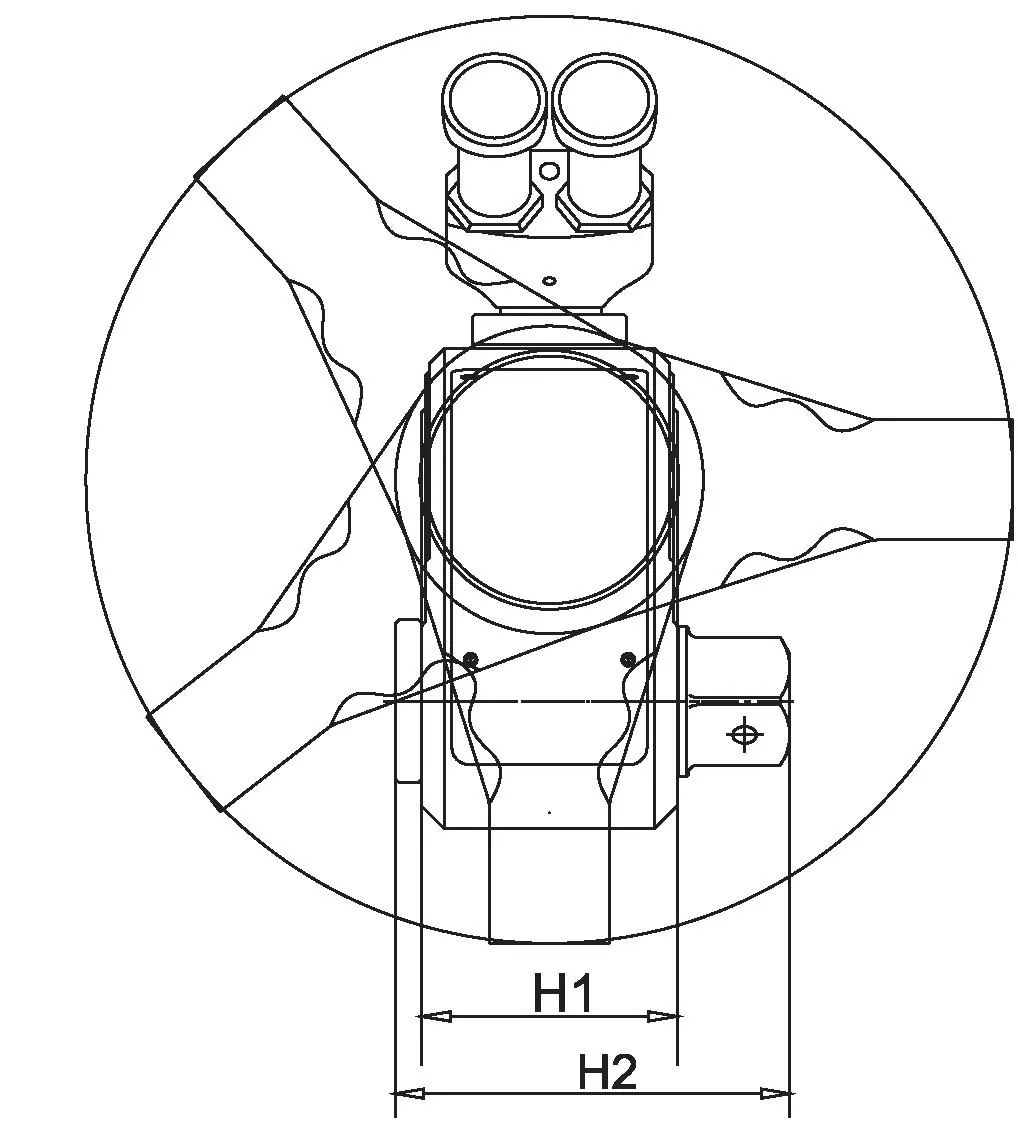

H1 (mm) 50 68 80 90 101 120 137 153
H2 (mm) 80 105 132 143 153 189 208 228
H3 (mm) 98 128 152 167 182 223 248 282
H4 (mm) 175 206 230 244 260 300 325 360
R1 (mm) 28 34 41 47 51 62 67 77
R2 (mm) 100 136 150 175 183 255 251 271
Square Drive 3/4" 1'' 1-1/2" 1-1/2" 1-1/2" 2-1/2" 2-1/2” 2-1/2”
TYPE 1ATWS 3ATWS 5ATWS 8ATWS 10ATWS 20ATWS 25ATWS 35ATWS
Torque (N.m) 183-1837 455-4512 758-7528 1096-10780 1456-14560 2666-26664 3472-34725 4866-48666
Bolt size (M) 16-36 22-48 27-56 30-64 36-72 42-90 48-100 64-120
Weight Kg 2.5 5 8 11 15 26.5 35 50
L1 (mm) 135 170 204 220 245 303 315 495
L2 (mm) 186 244 285 313 352 451 463 495
H1 (mm) 50 68 80 90 101 120 137 153
H2 (mm) 80 105 132 143 153 189 208 228
H3 (mm) 98 128 152 167 182 223 248 282
H4 (mm) 175 206 230 244 260 300 325 360
R1 (mm) 28 34 41 47 51 62 67 77
R2 (mm) 100 136 150 175 183 255 251 271
Square Drive 3/4" 1'' 1-1/2" 1-1/2" 1-1/2" 2-1/2" 2-1/2” 2-1/2”
