28P Series Hydraulic Hand Pump


28P-series high pressure hydraulic hand pumps are designed for high pressure hydraulic equipment. Its maximum output pressure reaches 2800bar, and customers can order every size of oil tank for different equipment. WREN serves a wide range accessory for this series. These product, designed for serving true resolutions, are entitled with TUV seal result of an effort with appropriate directives.

28P-series high pressure hydraulic hand pumps are designed for high pressure hydraulic equipment. Its maximum output pressure reaches 2800bar, and customers can order every size of oil tank for different equipment. WREN serves a wide range accessory for this series. These product, designed for serving true resolutions, are entitled with TUV seal result of an effort with appropriate directives.


Product Details

The built-in high and low pressure switching valve, low pressure high flow rate output.

-Aluminum titanium alloy corrosion resistance, high strength, light weight, impact resistance, adapt to a variety of harsh environment

-The built-in high and low pressure switching valve, low pressure high flow rate output.

The built-in high and low pressure switching valve, low pressure high flow rate output.

-Aluminum titanium alloy corrosion resistance, high strength, light weight, impact resistance, adapt to a variety of harsh environment

-The built-in high and low pressure switching valve, low pressure high flow rate output.

Type

28P80

28P160

Work Pressure Mpa (Low/HI)

2.0/280

2.0/280

One Stroke Oil ml (Low/HI)

32/0.9

32/0.9

Full Tank Oil L

2.26

3.58

Available Oil L

1.98

3.24

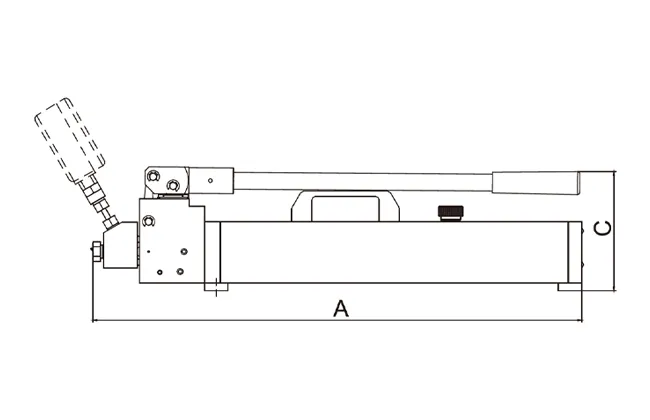

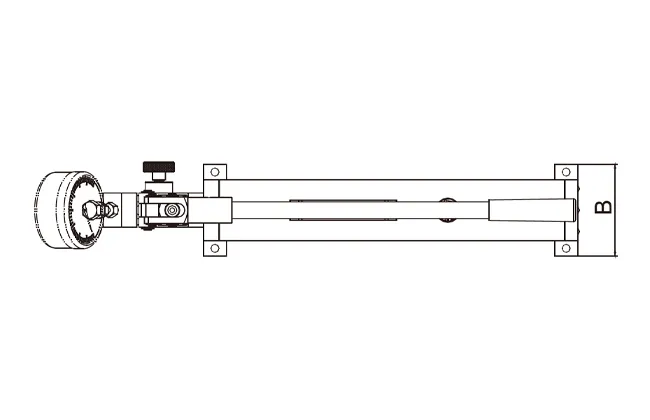

Size (A-B-C)

636/120/170

636/140/190

Oil interface

1/4nBSP

1/4HBSP

Gauge interface

1/2"BSP

1/2-BSP

Weight

8.5

10.5

Type

28P80

28P160

Work Pressure Mpa (Low/HI)

2.0/280

2.0/280

One Stroke Oil ml (Low/HI)

32/0.9

32/0.9

Full Tank Oil L

2.26

3.58

Available Oil L

1.98

3.24

Size (A-B-C)

636/120/170

636/140/190

Oil interface

1/4nBSP

1/4HBSP

Gauge interface

1/2"BSP

1/2-BSP

Weight

8.5

10.5
