LP3 Series Hydraulic Torque Wrench Electric Pump
LP3 series hydraulic torque wrench electric pump is the perfect companion for hydraulic torque wrenches. It can simultaneously applies to one or two wrenches, and can operate four wrenches at the same time with the optional components(FP4). With the high efficiency radiator, the pump can work 24 hours continuously, well competent to work on site. WREN provide after-sales service all over the world, and already got the approved by TUV certificate.
LP3 series hydraulic torque wrench electric pump is the perfect companion for hydraulic torque wrenches. It can simultaneously applies to one or two wrenches, and can operate four wrenches at the same time with the optional components(FP4). With the high efficiency radiator, the pump can work 24 hours continuously, well competent to work on site. WREN provide after-sales service all over the world, and already got the approved by TUV certificate.
Product Details
-Compact automatic three stage design.
-Applicable on one or two wrenches simultaneously.
-Aluminum oil tank with gauge.
-Have Φ100 high pressure gauge.
-Infinitely variable pressure adjustment between 70～700 bar.
-With the high efficiency radiator the pump can work 24 hours continuously.
-Can change the motor to fit the different voltage.
-Optional components(FP4), can operate four wrenches at the same time
-Compact automatic three stage design.
-Applicable on one or two wrenches simultaneously.
-Aluminum oil tank with gauge.
-Have Φ100 high pressure gauge.
-Infinitely variable pressure adjustment between 70～700 bar.
-With the high efficiency radiator the pump can work 24 hours continuously.
-Can change the motor to fit the different voltage.
-Optional components(FP4), can operate four wrenches at the same time
no data
 |
 |
| Model | LP3-2 | LP3-4 |
| Working pressure | 70MPa | 70MPa |
| Drive mode | Electric | Electric |
| Source of power | 220V/50Hz | 220V/50Hz |
| Power | 1.1kW | 1.1kW |
| Tank capacity | 5.5L | 5.5L |
| Flow(low-mid-High) | 7-1.6-0.8L/min | 7-1.6-0.8L/min |
| Cooler | Yes | Yes |
| Weight | 25kg | 27kg |
| Oil outlet | 4×1/4"NPT | 8×1/4"NPT |

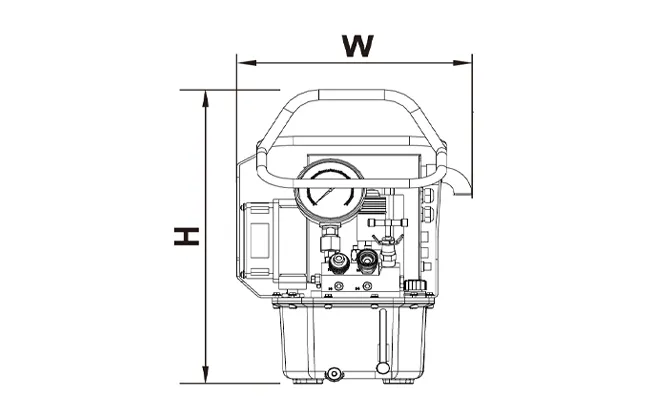

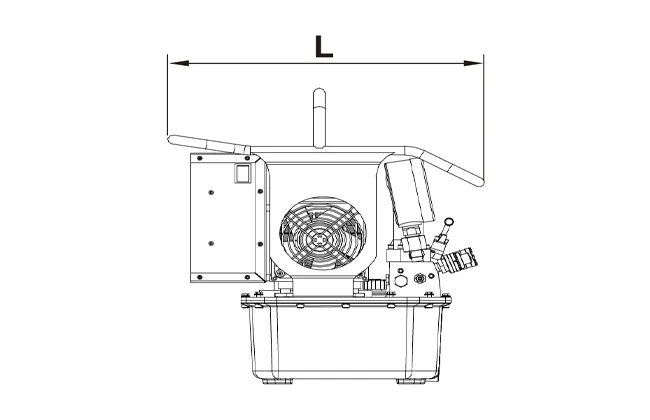

| LxWxH | 445×304×426mm | 461×304×426mm |
|
|
| Model | LP3-2 | LP3-4 |
| Working pressure | 70MPa | 70MPa |
| Drive mode | Electric | Electric |
| Source of power | 220V/50Hz | 220V/50Hz |
| Power | 1.1kW | 1.1kW |
| Tank capacity | 5.5L | 5.5L |
| Flow(low-mid-High) | 7-1.6-0.8L/min | 7-1.6-0.8L/min |
| Cooler | Yes | Yes |
| Weight | 25kg | 27kg |
| Oil outlet | 4×1/4"NPT | 8×1/4"NPT |
| LxWxH | 445×304×426mm | 461×304×426mm |
