LP3-N Series Hydraulic Torque Wrench Air Pump
LP3-N series hydraulic torque wrench air pump is the perfect companion for hydraulic torque wrenches. It can simultaneously applies to one or two wrenches, and can operate four wrenches at the same time with the optional components(FP4). With the high efficiency radiator, the pump can work 24 hours continuously, well competent to work on site. WREN provide after-sales service all over the world, and already got the approved by TUV certificate.
LP3-N series hydraulic torque wrench air pump is the perfect companion for hydraulic torque wrenches. It can simultaneously applies to one or two wrenches, and can operate four wrenches at the same time with the optional components(FP4). With the high efficiency radiator, the pump can work 24 hours continuously, well competent to work on site. WREN provide after-sales service all over the world, and already got the approved by TUV certificate.
Product Details
-Compact three-stage pump
-The Single valve block can be replaced by component FP4,there by allowing 2or 4 Tools to be driven simultaneously.
-Three stage with air drive.
-Supporting continuous operation with steel frame.
-4” diameter gauge,aluminium oil tank with oil level indicator
-Variable pressure adjustment between 70~700 bar
-Designed for continuous operation
-Compact three-stage pump
-The Single valve block can be replaced by component FP4,there by allowing 2or 4 Tools to be driven simultaneously.
-Three stage with air drive.
-Supporting continuous operation with steel frame.
-4” diameter gauge,aluminium oil tank with oil level indicator
-Variable pressure adjustment between 70~700 bar
-Designed for continuous operation
 |
 |
| Model | LP3-N2 | LP3-N4 |
| Working pressure | 70MPa | 70MPa |
| Drive mode | Pneumatic | Pneumatic |
| Gas consumption | ≥3.4m³/min | ≥3.4m³/min |
| Power | 4.0HP | 4.0HP |
| Tank capacity | 5.5L | 5.5L |
| Flow(low-mid-High) | 8.6-2.2-1.1L/min | 8.6-2.2-1.1L/min |
| Cooler | Yes | Yes |
| Weight | 19kg | 21kg |
| Oil outlet | 4×1/4"NPT | 8×1/4"NPT |
| Air pressure(Input) | 4~8bar | 4~8bar |

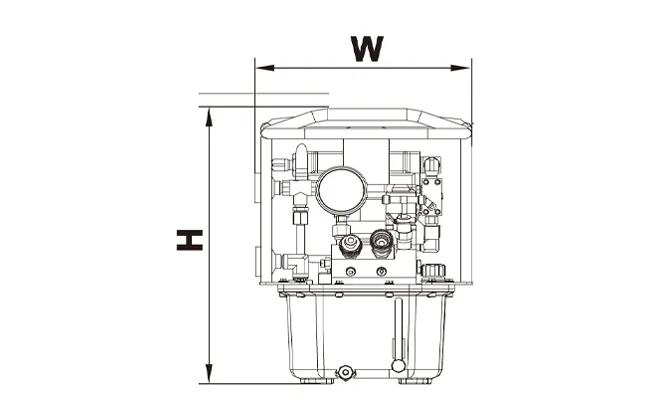

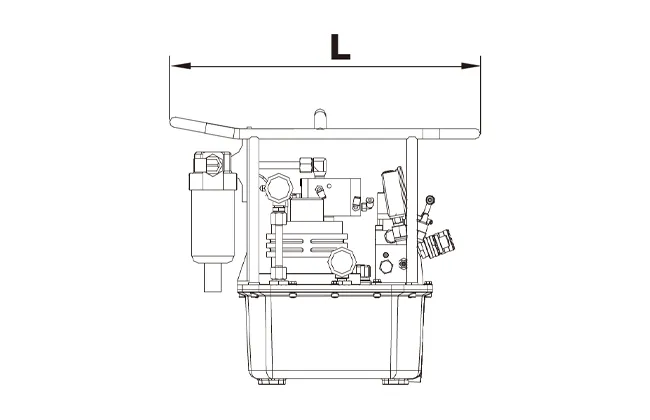

| LxWxH | 445×282×377mm | 460×282×377mm |
|
|
| Model | LP3-N2 | LP3-N4 |
| Working pressure | 70MPa | 70MPa |
| Drive mode | Pneumatic | Pneumatic |
| Gas consumption | ≥3.4m³/min | ≥3.4m³/min |
| Power | 4.0HP | 4.0HP |
| Tank capacity | 5.5L | 5.5L |
| Flow(low-mid-High) | 8.6-2.2-1.1L/min | 8.6-2.2-1.1L/min |
| Cooler | Yes | Yes |
| Weight | 19kg | 21kg |
| Oil outlet | 4×1/4"NPT | 8×1/4"NPT |
| Air pressure(Input) | 4~8bar | 4~8bar |
| LxWxH | 445×282×377mm | 460×282×377mm |
