HLP3-20 Series High Pressure Electric Tensioner Pump
HLP3-20 series high pressure electric tensioner pump is used for bolt tensioner in shipping vessel and wind power industry, and it supports an output pressure up to 2000bar. The Pump is equipped with cooling system, and can be used continuously for 24 hours with high efficiency. WREN provide after-sales service all over the world, and already got the approved by TUV certificate.
HLP3-20 series high pressure electric tensioner pump is used for bolt tensioner in shipping vessel and wind power industry, and it supports an output pressure up to 2000bar. The Pump is equipped with cooling system, and can be used continuously for 24 hours with high efficiency. WREN provide after-sales service all over the world, and already got the approved by TUV certificate.
Product Details
-The Pump with cooling system can be used continuously for 24 hours.
- Single-Acting, high performance
- Can be used for bolt tensioner in shipping vessel and wind power industry
- Accurately adjust output pressure :2000bar
- Easy to be connected with quick releasing couplings
- Convenient to carry with compact design
-The Pump with cooling system can be used continuously for 24 hours.
- Single-Acting, high performance
- Can be used for bolt tensioner in shipping vessel and wind power industry
- Accurately adjust output pressure :2000bar
- Easy to be connected with quick releasing couplings
- Convenient to carry with compact design
 |
 |
| Model | HLP3-20 | HLP3-20D | HLP3-30 |
| Power source | 220V/50Hz | 115V/60Hz | 220V/50Hz |
| Flow(low-mid-High) | 5.5L | ||
| Flow(low-mid-High) | 6.0-0.30L/min | 4.2-0.20L/min | 5.4-0.15L/min |
| Maximum output pressure | 2000bar | 2000bar | 3000bar |
| Output interface | 2×1/4"BSP | ||
| Power | 1.1kW | 0.9kW | 1.1kW |

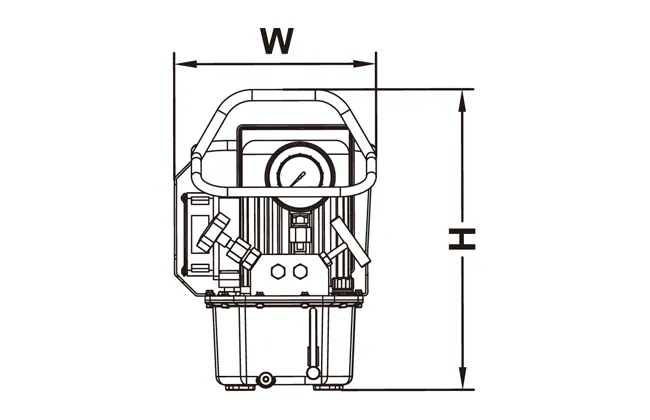

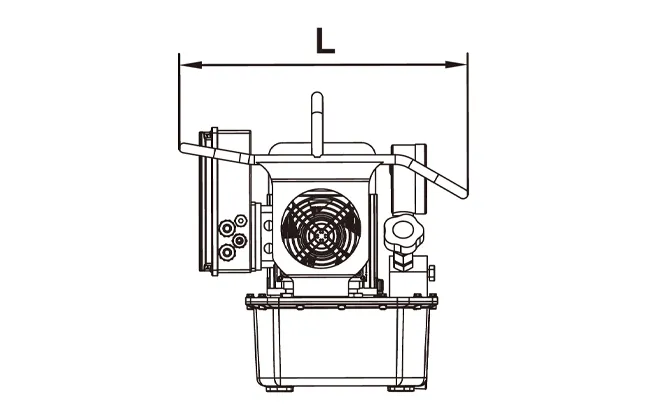

| Weight | 27kg（419×304×464mm） | ||
|
|
| Model | HLP3-20 | HLP3-20D | HLP3-30 |
| Power source | 220V/50Hz | 115V/60Hz | 220V/50Hz |
| Flow(low-mid-High) | 5.5L | ||
| Flow(low-mid-High) | 6.0-0.30L/min | 4.2-0.20L/min | 5.4-0.15L/min |
| Maximum output pressure | 2000bar | 2000bar | 3000bar |
| Output interface | 2×1/4"BSP | ||
| Power | 1.1kW | 0.9kW | 1.1kW |
| Weight | 27kg（419×304×464mm） | ||
